Zmodell ZM05A-2
Miniature digital decoder for DCC, MM, SX1, SX2, DC analog

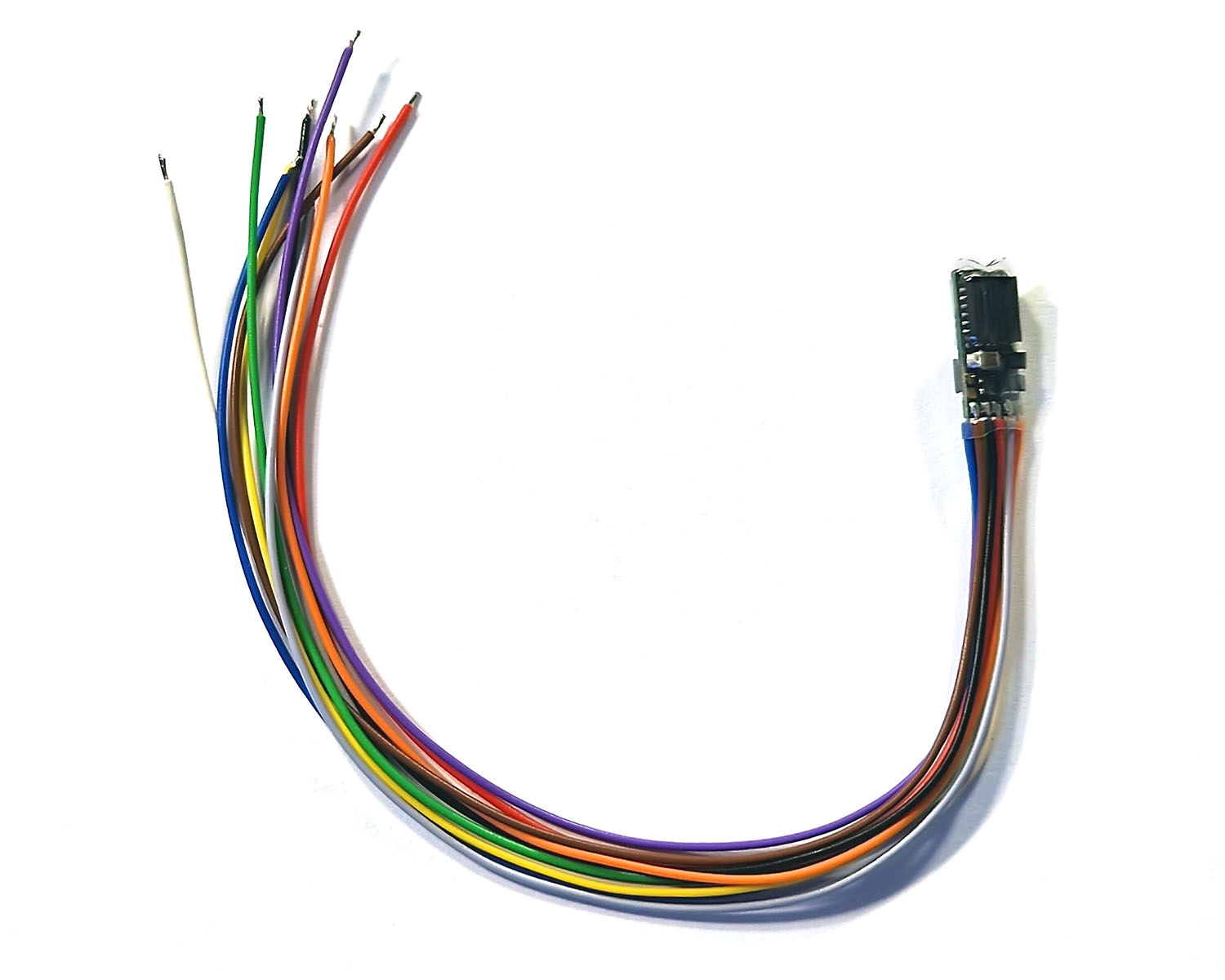

with 10 stranded wires, length 100 mm
for z scale

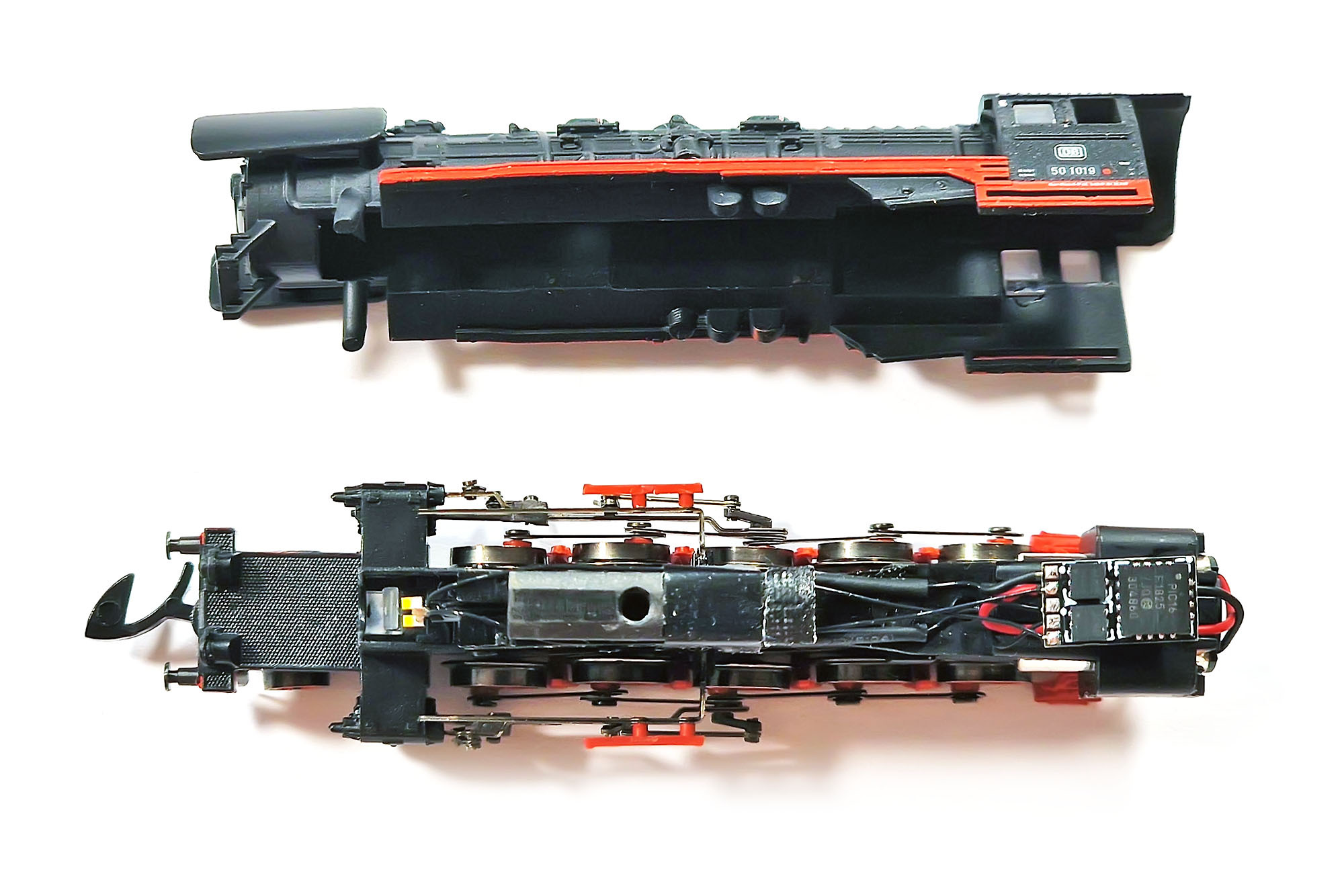

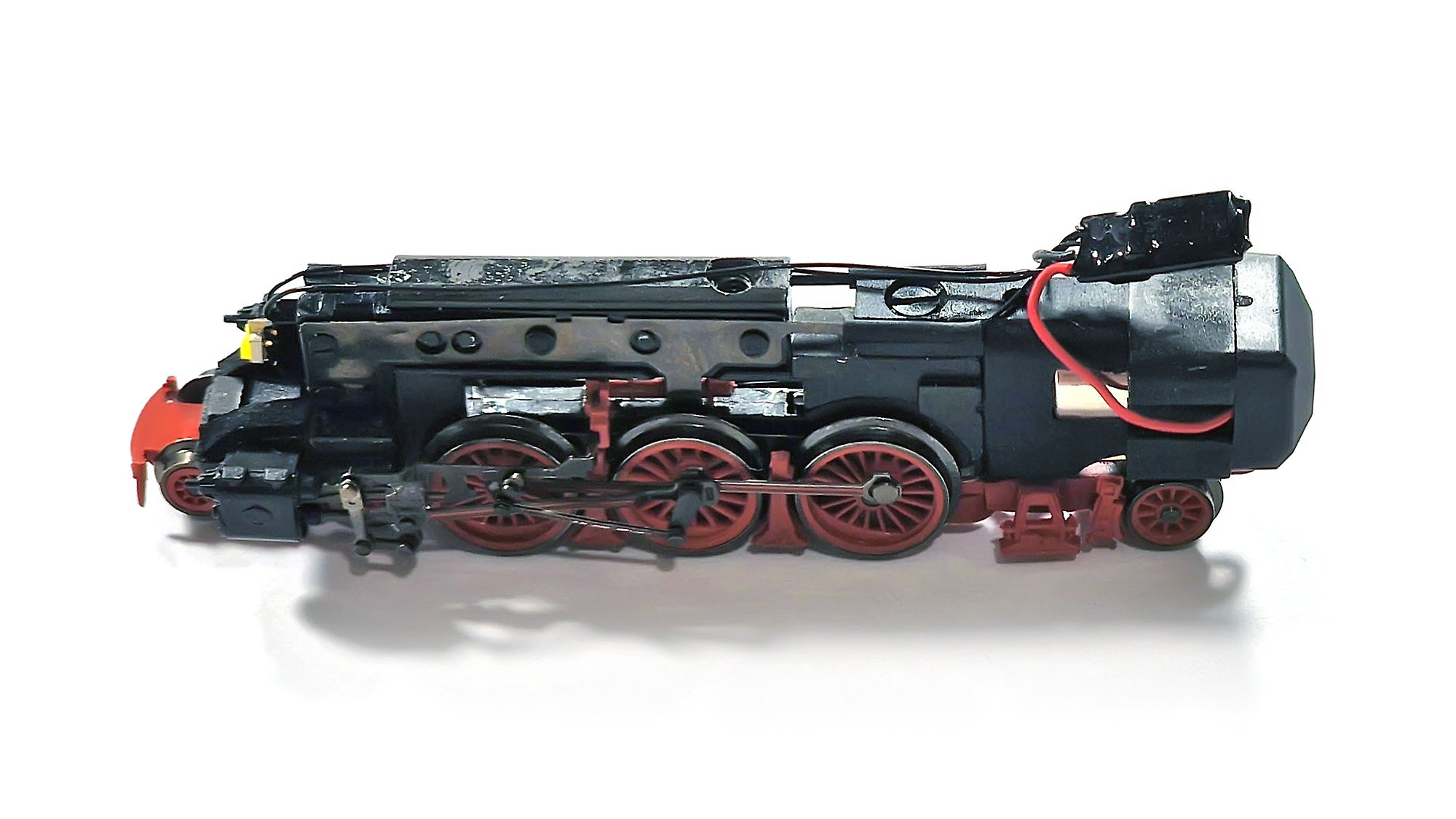

Image is a representation of implementation of the ZM05A-2 DCC board.
z.scale.hobo's Price: $64.99 SEE OUR SHIPPING POLICY Dimensions: 9 x 5 x 2mm (0.35" x 0.20" x 0.08") Description: Zmodell has done it - the smallest digital decoder in the world currently on the market. This -2 is the version with wires - it is additionally sealed with thin shrinking tube (not a conventional shrinking tube, but with the type that is often used for sealing Lithium rechargeable batteries; it is much thinner). Along with standard track, motor and light connections, my decoder also features amplified AUX1, AUX2 and even two non-amplified AUX3 and AUX4 outputs. Furthermore, there are GND and VS outputs as well. The last two outputs are very important as common wires for light and AUX functions, and also for connecting external energy storage module. Technical data

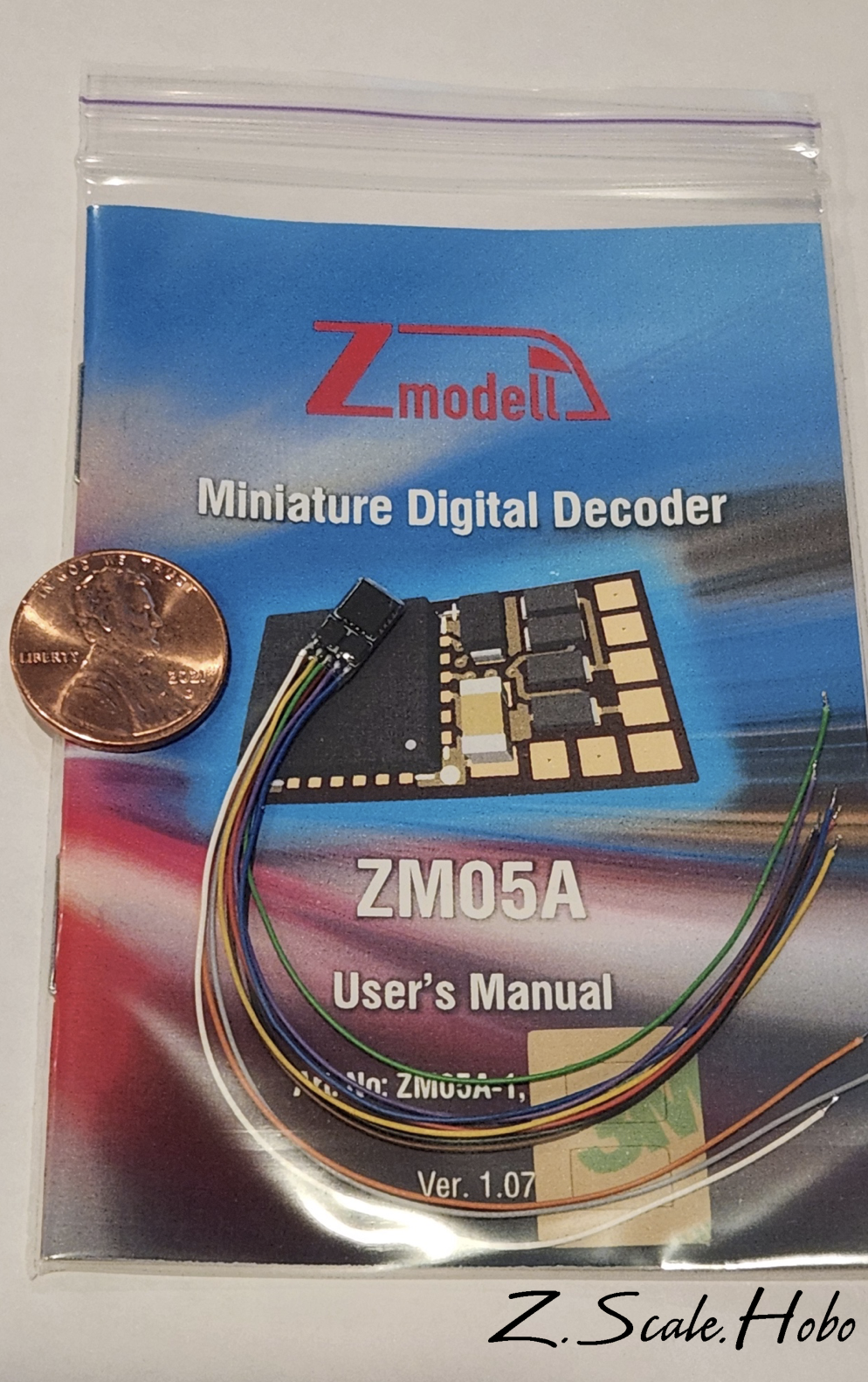

Package Contents:
From the manufacturer: "Zmodell ZM05A, currently the world's smallest digital decoder on the market, was specially developed for the smallest scales such as Z and N and fits perfectly into most vehicle models of the scales mentioned. Despite its very small size, the digital decoder offers the full range of functions and up to 4 additional outputs to cover many application scenarios. The digital decoder has GND and VS outputs for connecting optional energy storage modules (for continuous running even if the power is temporarily cut off). The energy storage module Zmodell ZM-ESM-01 is recommended"
|
LINK to User's Manual (opens pdf)
| PURCHASING OPTIONS: | PRICE | Purchase |
|
DCC Decoder: ZM05A-2
Digital Decoder Board IN STOCK! Ships from z.scale.hobo in California Shipping price in cart is for domestic USA only; for non-USA shipments, contact us for a quote FIRST |
$64.99 |
|
CONTACT z.scale.hobo |
