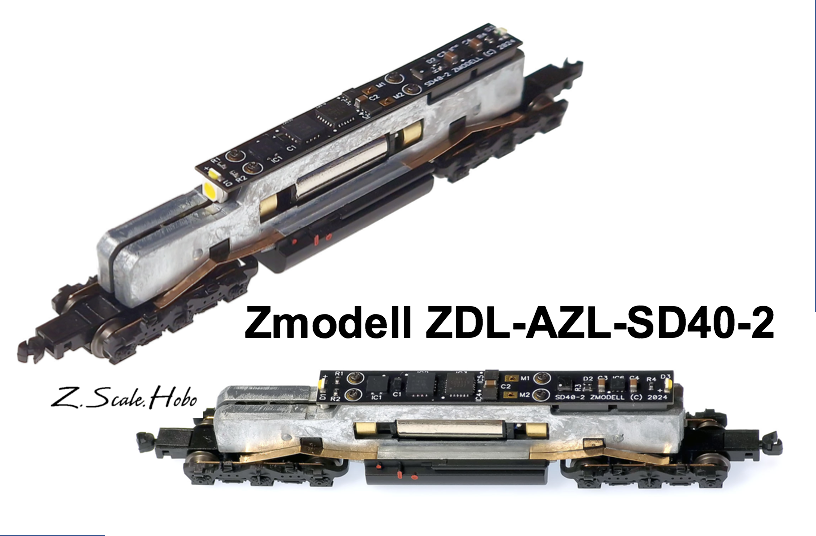

Description: Zmodell has done it - a slim-line board packed with features that fits into the compact area inside the AZL SD40-series locomotives.
Item release date is March 2024. Installation is quite simple for this board - drop in via the 4 screws on the locomotive.

Technical data
Operating mode: DCC, MM, SelecTRIX 1, SelecTRIX 2, DC Analog
Maximum voltage: 14 V in digital mode, 12 V in analog mode
Power Buffer: Integrated high efficiency 940uF (2 x 470uf) energy storage module with thermal and over voltage protection

Functions
F0 - Directionally controlled headlights
F1 - Dimming function (brightness of headlights reduced by 50%)
F2 - Shunting mode (maximum speed reduced by 50%, short acceleration & deceleration time)
Default address: 3 (DCC), 01 (SelecTRIX)

From the manufacturer: "The SD40-2 digital decoder features integrated highly effective energy storage module (capacitors) that typically cost $30 if sold separately. There are extended light features - the special dual LED configuration of the front lights can be adjusted by decoder settings to fit into different variations of SD40-2 locomotives - with upper headlights above the driver's cabin or without them."

STATUS: IN STOCK!
